Reporting notes 01

Working for over 10 years in IT technology, I realized that lots of experiences were lost with my memory when time passed by. So I wrote this note for keep my memory. If anyone is also interested in this matter, please contact me.

Problem: business requires an report in excel format to be automated in web application.

Final web format:

Original data format:

Key points:

• Data must be summarized by date, week, month, year, and job name dimensions.
• Fact table contains dozen millions of records for several years;
• The reporting requires to rotate the data by 90 degrees to display summarized data
• Multiple data presentations in a single column, witch includes integer number, decimal, and percentage.

Solution:

1. Get data from data source


   OpenQuery for linked server does not accept variables, therefore we have to use dynamic query statement.
   set @openquery = '
   SELECT  [Date],
           [Day],
           JobName,
           Volume_to_Work,
           Volume_Worked,
           Volume_RPC
   FROM OPENQUERY([S1],''
      SELECT cast(a.Date as Date) [Date],
           datename(dw,date) as [Day],
           a.JobName,
           a.Volume_to_Work,
           a.Volume_Worked,
           isnull(b.Volume_RPC,0) as Volume_RPC
      FROM
      (
           --VOLUME
           select BACKUPDATE date,JobName,sum(VOLUME_SENT) as Volume_to_Work,sum(VOLUME_WORKED) as Volume_Worked
           from TBL_METRICS_RAPPORTVOLUME
           where JobName in ('''''+
           replace(
           case @JOB_NAME_LIST when 'All|' then 'Ucm_Arics_ON_Preview|Ucm_Caprice_QC_Preview|UCM_OB_E_PREVIEW|UCM_OB_F_PREVIEW'
           else @JOB_NAME_LIST end
           ,'|',''''',''''')
           +'''''
           )
           and year(BACKUPDATE) = '+cast(@REPORT_YEAR as varchar)+'
           group by JobName,BACKUPDATE
      ) a
      left join
      (
           --RPC
           select Backupdate,session,count(session) as Volume_RPC
           from TBL_ACCOUNTS_WORKED a
           left join ( select RPC,Result from TBL_REFERENCE_DIALERCODES where site = ''''Internal'''' ) b on a.RELEASECODE= b.RESULT
           where session in ('''''+
           replace(
           case @JOB_NAME_LIST when 'All|' then 'Ucm_Arics_ON_Preview|Ucm_Caprice_QC_Preview|UCM_OB_E_PREVIEW|UCM_OB_F_PREVIEW'
           else @JOB_NAME_LIST end
           ,'|',''''',''''')
           +'''''
           )
           and year(Backupdate) = '+cast(@REPORT_YEAR as varchar)+'
           and b.RPC = 1
           group by Backupdate,session
      ) b on a.Date = b.Backupdate and a.JobName = b.session
      where datename(dw,date) <> ''''Sunday''''''
   )'

   create table #campaign ([Date] date,[Day] varchar(20),JobName varchar(255),Volume_to_work int,Volume_worked int,Volume_RPC int)
   insert #campaign exec(@openquery)


   generated openquery look like:

   SELECT  [Date],
           [Day],
           JobName,
           Volume_to_Work,
           Volume_Worked,
           Volume_RPC
   FROM OPENQUERY([BREPP1],'
           SELECT cast(a.Date as Date) [Date],
                  datename(dw,date) as [Day],
                  a.JobName,
                  a.Volume_to_Work,
                  a.Volume_Worked,
                  isnull(b.Volume_RPC,0) as Volume_RPC
           FROM
           (
                   --VOLUME
                   select BACKUPDATE date,JobName,sum(VOLUME_SENT) as Volume_to_Work,sum(VOLUME_WORKED) as Volume_Worked
                   from [Source_Dialer].[dbo].[TBL_METRICS_RAPPORTVOLUME]
                   where JobName in (''All'',''Ucm_Arics_ON_Preview'',''Ucm_Caprice_QC_Preview'',''UCM_OB_E_PREVIEW'',''UCM_OB_F_PREVIEW''
                   )
                   and year(BACKUPDATE) = 2017
                   group by JobName,BACKUPDATE
           ) a
           left join
           (
                   --RPC
                   select Backupdate,session,count(session) as Volume_RPC
                   from Source_Dialer.dbo.TBL_METRICS_ACCOUNTS_WORKED a
                   left join ( select RPC,Result from Source_Dialer.dbo.TBL_METRICS_REFERENCE_DIALERCODES where site = ''Internal'') b on cast(a.RELEASECODE as varchar)= b.RESULT
                   where session in (''All'',''Ucm_Arics_ON_Preview'',''Ucm_Caprice_QC_Preview'',''UCM_OB_E_PREVIEW'',''UCM_OB_F_PREVIEW''
                   )
                   and year(Backupdate) = 2017
                   and b.RPC = 1
                   group by Backupdate,session
           ) b on a.Date = b.Backupdate and a.JobName = b.session
           where datename(dw,date) <> ''Sunday'''
   )


2. Get summarized data


   select
      row_number() over(order by d.[JobName],d.date) as Id
      ,d.[JobName]
      ,year(d.[Date]) [Year]
      ,right(cast(d.DateISO as varchar),6) + cast(d.DayOfWeek as varchar) [Weekday]
      ,d.[Month]
      ,datepart(wk,d.[Date]) Week
      ,d.[Date]
      ,sum(Volume_to_work) Inventory
      ,sum(Volume_worked) Worked
      ,sum(Volume_RPC) RPC
   into #view_campaign
   from #campaign c
   right join (
      select [JobName],cd.[Date],cd.DateISO,cd.DayOfWeek,cd.month
      from (select distinct [JobName] from #campaign) c
      full outer join dbo.tbl_dim_date cd on 1=1
      where cd.year=@PRM_REPORT_YEAR
   ) d on d.[JobName]=c.[JobName] and c.[Date]=d.[Date]
   group by
        d.[JobName]
        ,year(d.[Date])
        ,d.[Month]
        ,datepart(Wk,d.[Date])
        ,d.[Date]
        ,right(cast(d.DateISO as varchar),6) + cast(d.DayOfWeek as varchar)




3. Summarized by week, month, year for each jobname, use rollup to get weekly, monthly total columns in final report



4. Remove duplicated week that cross months



   --Sum the value of the week that cross months (Line38 + Line 44)
   update #tmp set Inventory=t.Inventory, Worked=t.Worked, rpc=t.rpc
   from #tmp v join
   (
      select JobName,Agg
            ,sum([Inventory])[Inventory]
            ,sum([Worked])[Worked]
            ,sum([RPC])[RPC]
      from #tmp
      where Agg like 'w%'
      group by Agg,JobName
   ) t on t.Agg=v.[Agg]
   where v.agg=t.agg and v.JobName=t.JobName



   Delete (Line38) the value of the first week of the duplicated week
   delete from #tmp where agg+cast([Month] as varchar) in
   (select agg+cast(min([Month]) as varchar)
    from #tmp
    where agg like 'w%'
    group by JobName,agg
    having count(agg)>1
   )

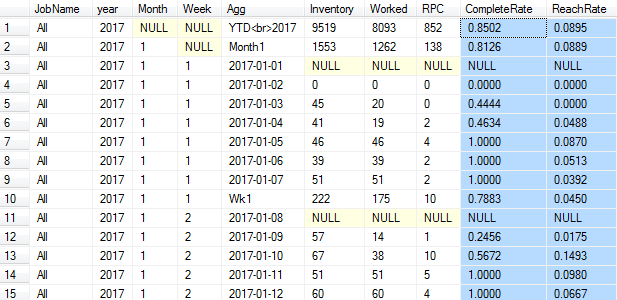

5. Add calculated columns: CompleteRate, ReachRate

   They are the result of division, so dot not use avg to get wrong result
      ALTER TABLE #tmp add CompleteRate decimal(14,4),ReachRate decimal(14,4)
      update #tmp set
   CompleteRate = case [Inventory] when 0 then 0 else [Worked]*1.0/[Inventory] end,
      ReachRate = case [Inventory] when 0 then 0 else [RPC]*1.0/[Inventory] end
      select * from #tmp




6. Generate dynamic columns definition and header columns


   --@colDesc is for table header, # followed by datatype is for display formatting
   select @col += ',' + quotename(agg)+' varchar(15)'
   from #tmp
   where [year]=@REPORT_YEAR and JobName='All'


   select @colDesc += ',[' + dbo.[ufn_GetCampaignHeader](agg)+'#string] varchar(15)'
   from #tmp
   where [year]=@REPORT_YEAR and JobName='All'


   select @col = stuff(@col,1,1,''), @colDesc = stuff(@colDesc,1,1,'')

   The value of the variable @col =

   [YTD<br>2017] varchar (15),
   [Month1]     varchar (15),
   [2017-01-01] varchar (15),
   [2017-01-02] varchar (15),
   [2017-01-03] varchar (15),
   [2017-01-04] varchar (15),
   [2017-01-05] varchar (15),
   [2017-01-06] varchar (15),
   [2017-01-07] varchar (15),
   [Wk1]       varchar (15),
   [2017-01-08] varchar (15),
   [2017-01-09] varchar (15),
   ......
   [2017-12-28] varchar (15),
   [2017-12-29] varchar (15),
   [2017-12-30] varchar (15),
   [Wk52]       varchar (15),
   [2017-12-31] varchar (15),
   [Wk53]       varchar (15)

   The value of the variable @colDesc =

   [YTD<br>2017#string] varchar(15),
   [Jan#string] varchar(15),
   [Sun<br>170101#string] varchar(15),
   [Mon<br>170102#string] varchar(15),
   [Tue<br>170103#string] varchar(15),
   [Wed<br>170104#string] varchar(15),
   [Thu<br>170105#string] varchar(15),
   [Fri<br>170106#string] varchar(15),
   ......
   [Fri<br>171229#string] varchar(15),
   [Sat<br>171230#string] varchar(15),
   [Wk52#string]          varchar(15),
   [Sun<br>171231#string] varchar(15),
   [Wk53#string]          varchar(15)



7. Create temp summary table to store pivoted final data

   --table tmp_summary, add spid value in the global temp table name to isolate concurrent users
   For using dynamic sql query we have to use global temp table, or we are unable to access the temp table.
   Seq (sequence) column is for displaying data in order for each job name
      declare @tmptable varchar(1000)
      select @tmptable = '##tmp_summary_' + cast(@@SPID as varchar)
      exec('if object_id(''tempdb..' + @tmptable + ''') is not null drop table ' + @tmptable)
      exec('create table ' + @tmptable + ' ([!Year] int,[JobName#string] varchar(max),[!Seq] int,[Campaign#string] varchar(max),'+ @colDesc + ')')


   --result:
   create table tmp_summary_51 ([Year] int,JobId int,Seq int,JobName varchar(max),[Year2017 Total] varchar(20),[Month1 Total] varchar(20),[2017-01-01] varchar(20),[2017-01-02] varchar(20),[2017-01-03] varchar(20),[2017-01-04] varchar(20),[2017-01-05] varchar(20),[2017-01-06] varchar(20),[2017-01-07] varchar(20),[Week1 Total] varchar(20),[2017-01-08] varchar(20),[2017-01-09]
   ......
   varchar(20),[2017-06-23] varchar(20),[2017-06-24] varchar(20),[Week25 Total] varchar(20),[2017-06-25] varchar(20),[2017-06-26] varchar(20),[2017-06-27] varchar(20),[2017-06-28] varchar(20),[2017-06-29] varchar(20),[2017-06-30] varchar(20),[Week26 Total] varchar(20))



8. Turning table in 90 degree with pivot


   declare @job varchar(255)
   declare csr cursor FAST_FORWARD for select Name from @tbl_job


   open csr
   fetch next from csr into @job
   while @@fetch_status = 0
   begin
      --get column list
      if @columns is null
             select @columns = replace (@col,' varchar (15)','')

      --rotate
      --inventory
      set @sql ='insert into ' + @tmptable + '
      select Year, JobName, 1 seq, Campaign,' + @columns +'
      from (
             select JobName,JobName+'' Inventory'' Campaign,[year],[agg],Inventory
             from #tmp
             where JobName = ''' + @job + '''
             ) x
      pivot (
             sum(Inventory) for [agg] in ('+@columns+')
      ) as pvt
      --where [year] is not null
      order by [year], JobName, seq
      '
      exec(@sql)


      --worked
      set @sql ='insert into ' + @tmptable + '
      select Year, JobName, 2 seq, Campaign,' + @columns +'
      from (
             select JobName, JobName + '' Worked'' Campaign, [year], [agg], Worked
             from #tmp
             where JobName = ''' + @job + '''
             ) x
      pivot (
             sum(worked) for [agg] in ('+@columns+')
      ) as pvt'
      exec(@sql)



      --% of completion
      set @sql ='insert into ' + @tmptable + '
      select Year, JobName,3 seq, Campaign,' + @columns +'
      from (
             select JobName,''% of Completion'' Campaign, [year], [agg], CompleteRate
             from #tmp
             where JobName = ''' + @job + '''
             ) x
      pivot (
             avg(CompleteRate) for [agg] in ('+@columns+')
      ) as pvt'
      exec(@sql)




      --RPC
      set @sql ='insert into ' + @tmptable + '
      select Year, JobName, 4 seq, Campaign,' + @columns +'
      from (
             select JobName,''RPC'' Campaign, [year], [agg], RPC
             from #tmp
             where JobName = ''' + @job + '''
             ) x
      pivot (
             sum(RPC) for [agg] in ('+@columns+')
      ) as pvt'
      exec(@sql)

      --ReachRate
      set @sql ='insert into ' + @tmptable + '
      select Year,JobName,5 seq, Campaign,' + @columns +'
      from (
             select JobName,''Reach Rate'' Campaign, [year], [agg], ReachRate
             from #tmp
             where JobName = ''' + @job + '''
             ) x
      pivot (
             avg(ReachRate) for [agg] in ('+@columns+')
      ) as pvt'
      exec(@sql)

   fetch next from csr into @job
   end
   close csr
   deallocate csr

   pivoted data look like this:



   dynamic pivot statement:



9. Rendered on web page



   Report filter:




10. 5 temp tables are used

    #campaign              (Date, Day, JobName, Volume_to_work, Volume_worked, Volume_RPC) –stores original data
    #view_campaign  (JobName, Year, Weekday, Month, Week, Date, Inventory, Worked, RPC)  –summarized data
    #tmp                       (JobName, Year, Month, Week, Agg, Inventory, Worked, RPC)                --target aggregation data
    ##tmp_summary_spid(Year, JobName, Seq, Campaign, YTD, Jan, Sun, Mon, Tue, … )      --final output data


11. Further action:

    Stores pivoted data in a table with ETL process to improve the performance.


Note:

• the data used in this note is test date, not real.
